Infrared Thermal Image Camera Resolution 120 x 90 TMi120S

TMi120S Infrared Thermal Image Camera Resolution 120 x 90

Resolution: The infrared thermal imager has a high-definition digital display, which can be used to show the characteristics of the product and make it more accurate.

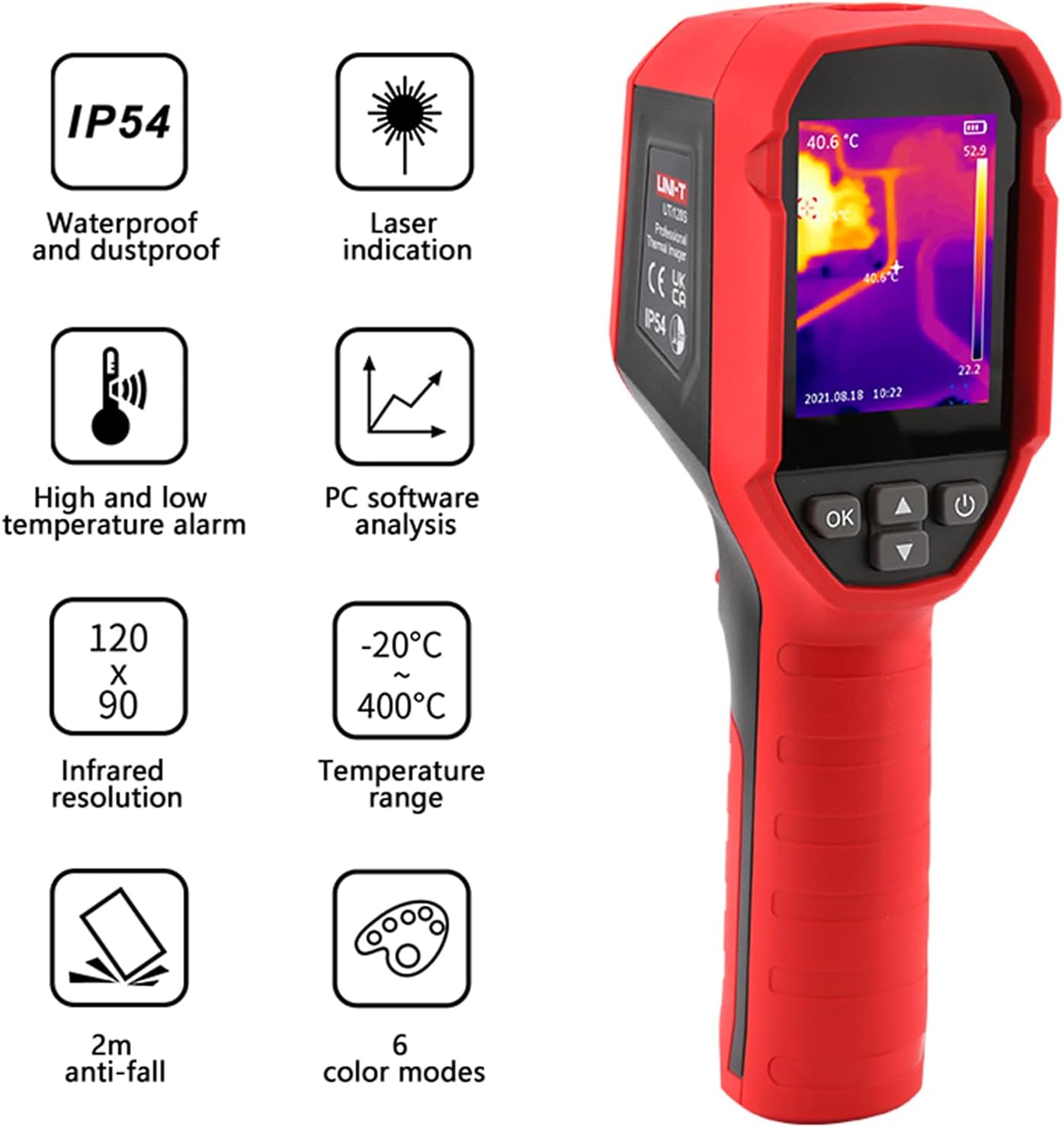

Temperature measurement range -20~400 ℃, infrared resolution 10800, with center point temperature measurement and automatic tracking of high and low temperatures, and equipped with LED lighting/laser indication/high and low temperature alarm.

Portable & easy to use: This thermal thermal imager is lightweight and portable, easy to carry and store. you can take it with you when you go out for outdoor activities or travel.

It can be photographed and stored, and the equipped infrared image analysis software can help you understand every detail for later analysis.

Specifications:

Temperature measurement range: -15℃ ~ 550℃/(5℉~1022℉)

Sensors: Uncooled infrared focal plane array

Display screen: 2.4“TFT LCD

Display resolution: 320*240

Thermal Pixel:120X90(10800)

Pixel size: 17um

Field of view: 50°(H)*38°(V)

Optimum test distance: 50cm

Resolving power: 0.1°C

Image Save: BMP format

Thermal imager<60mK

Frame frequency<25Hz

PC analysis software: Yes

Date communication: Type-C USBA

Package included:

1* Meter

1* Type-C USB cable

1* 16G TF card
